Workmaster Plate with D rings. 1 Series , 2 series, 3 series, 4 series, select 5 series

SKU: WMDR

$199.00 Bolt On, Powder coated with predrilled holes, all hardware included.

The Workmaster Plate is the perfect addition to your tractor for the hobby farm enthusiast, from moving around small trailers to lifting awkward materials and pulling those unwanted shrubs out to safely secufrring your tractor during transport, you will always find a job for the Workmaster plate!

Greatly increases the strength of the center portion of the bucket due to the 1/4” steel plate foundation and leading edge construction. The Workmaster Plate aligns perfectly to the contour of your John Deere tractor bucket.

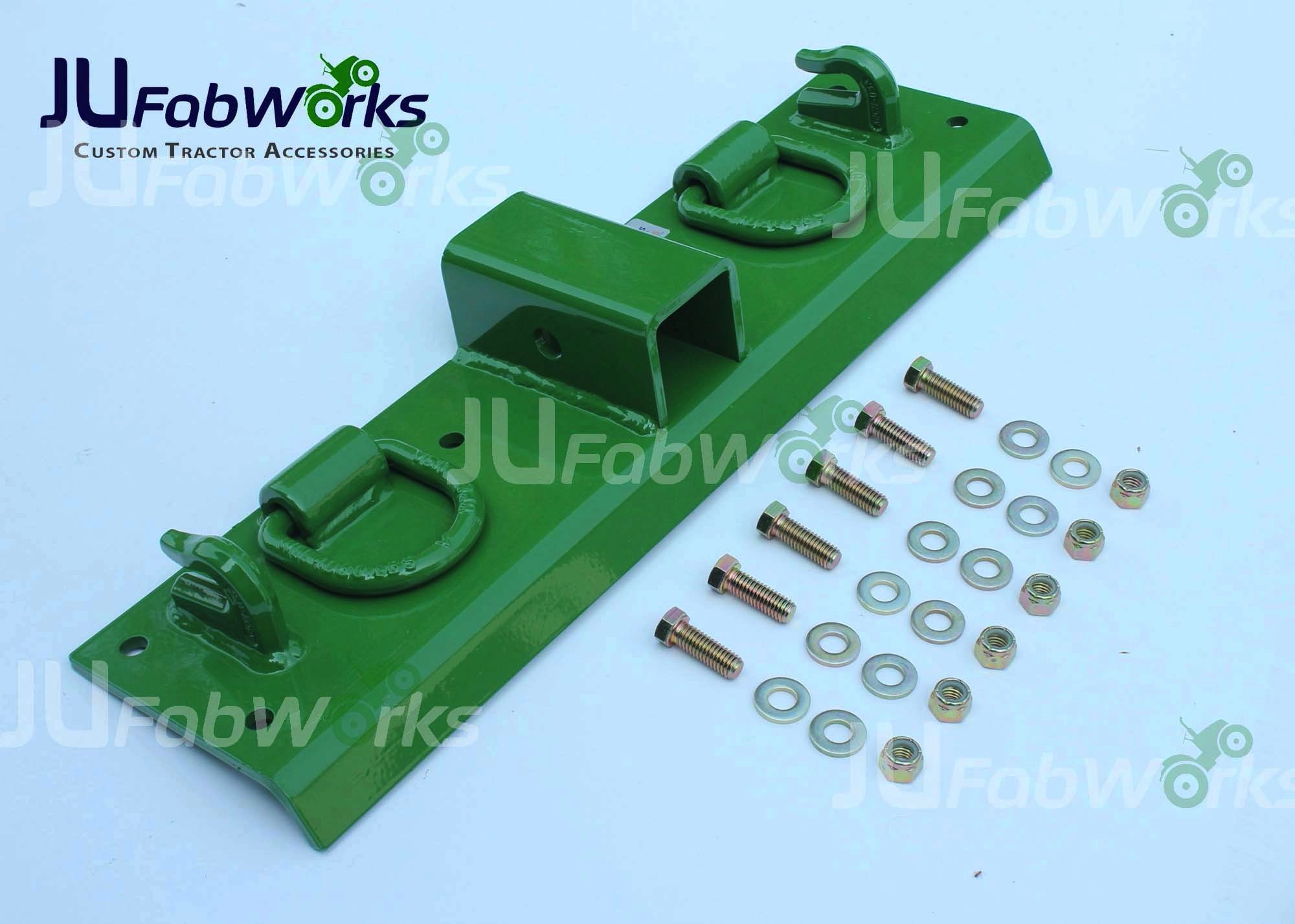

• 22” L, 1/4” thick steel plate foundation with formed front leading edge for increased strength

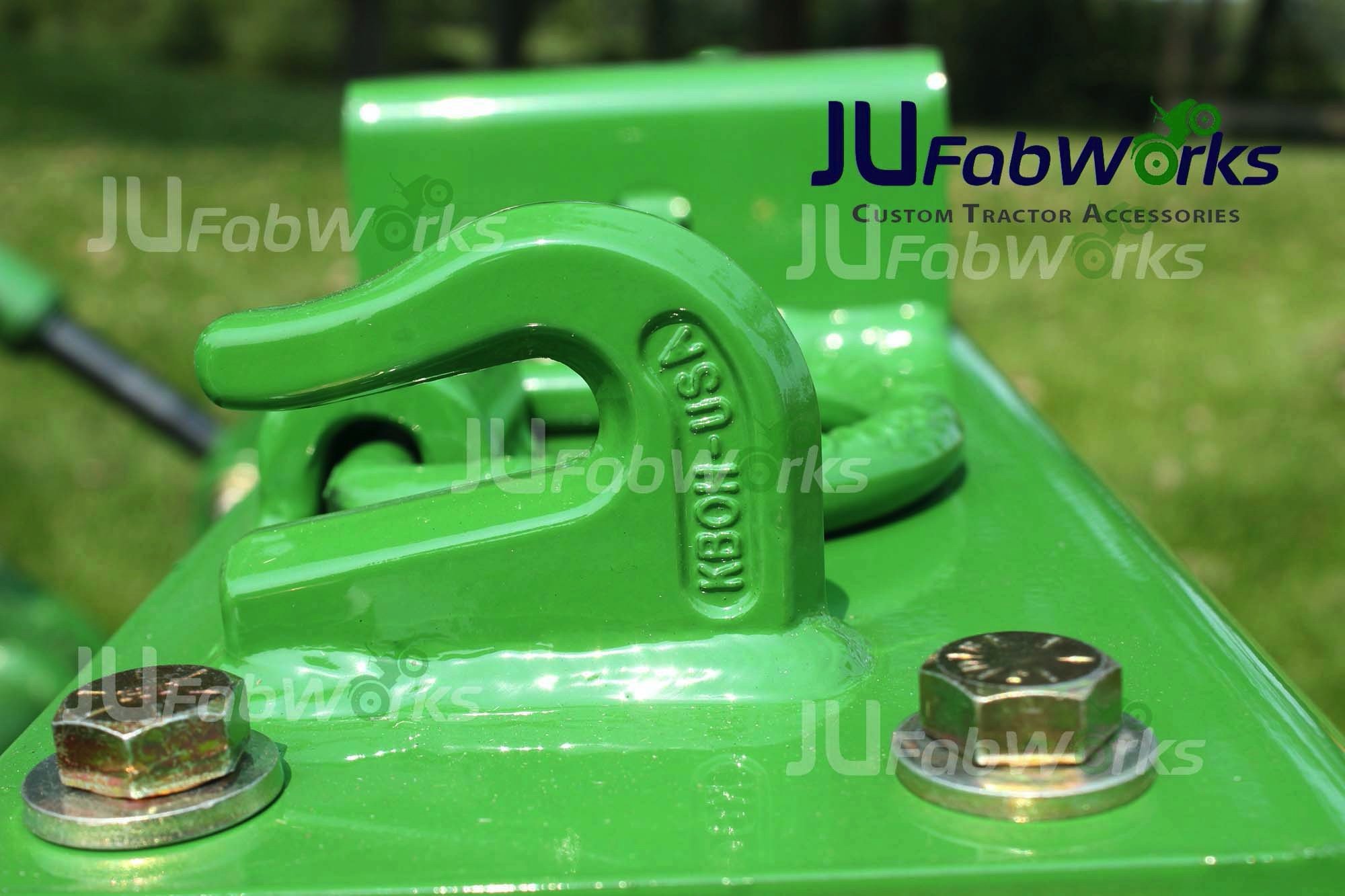

• (2) 5/16” forged grab hooks (G70) rated at 4700lbs WLL (Accepts 3/8” chain and under)

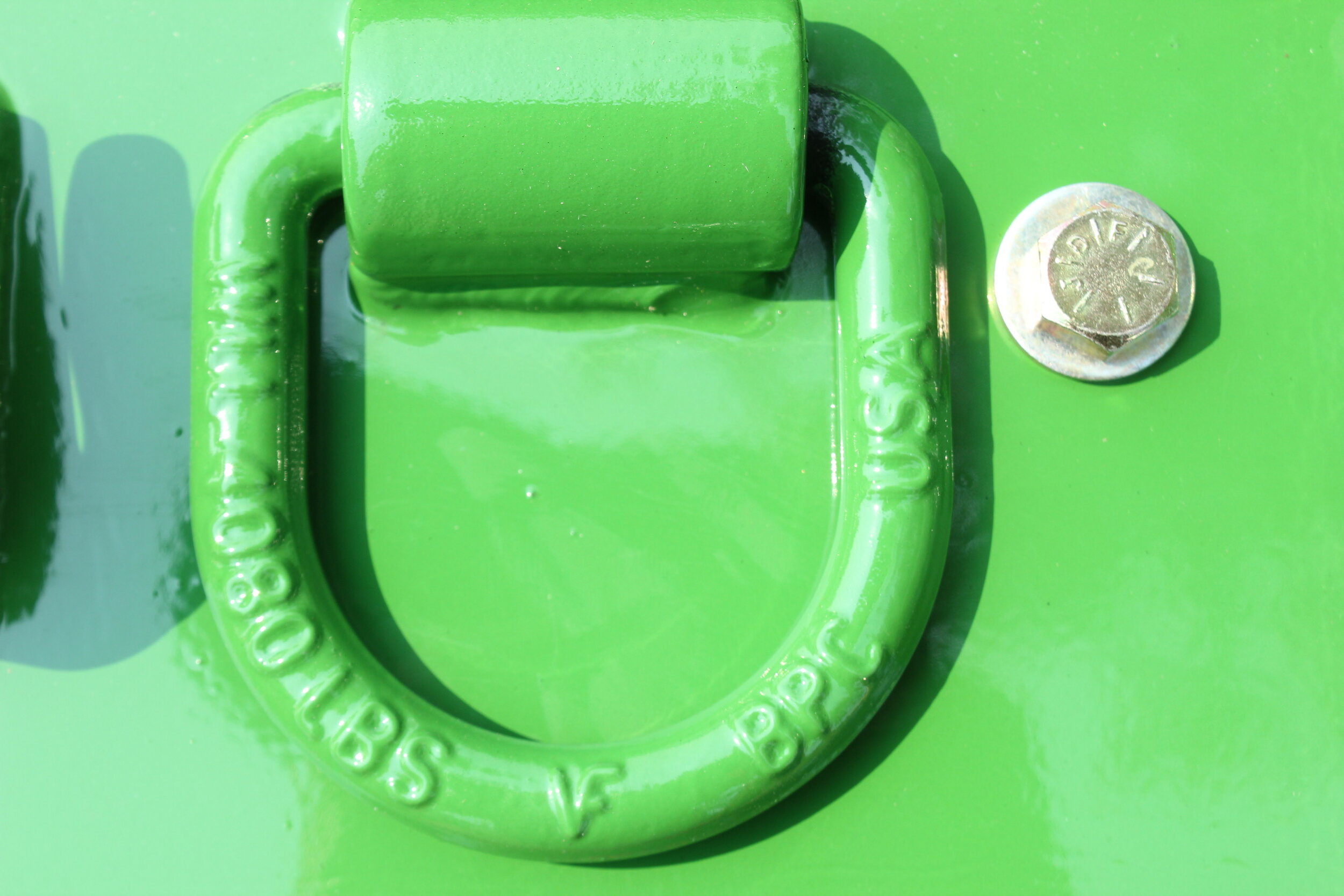

• (2) 1/2” forged D rings rated at 4000 lb WLL

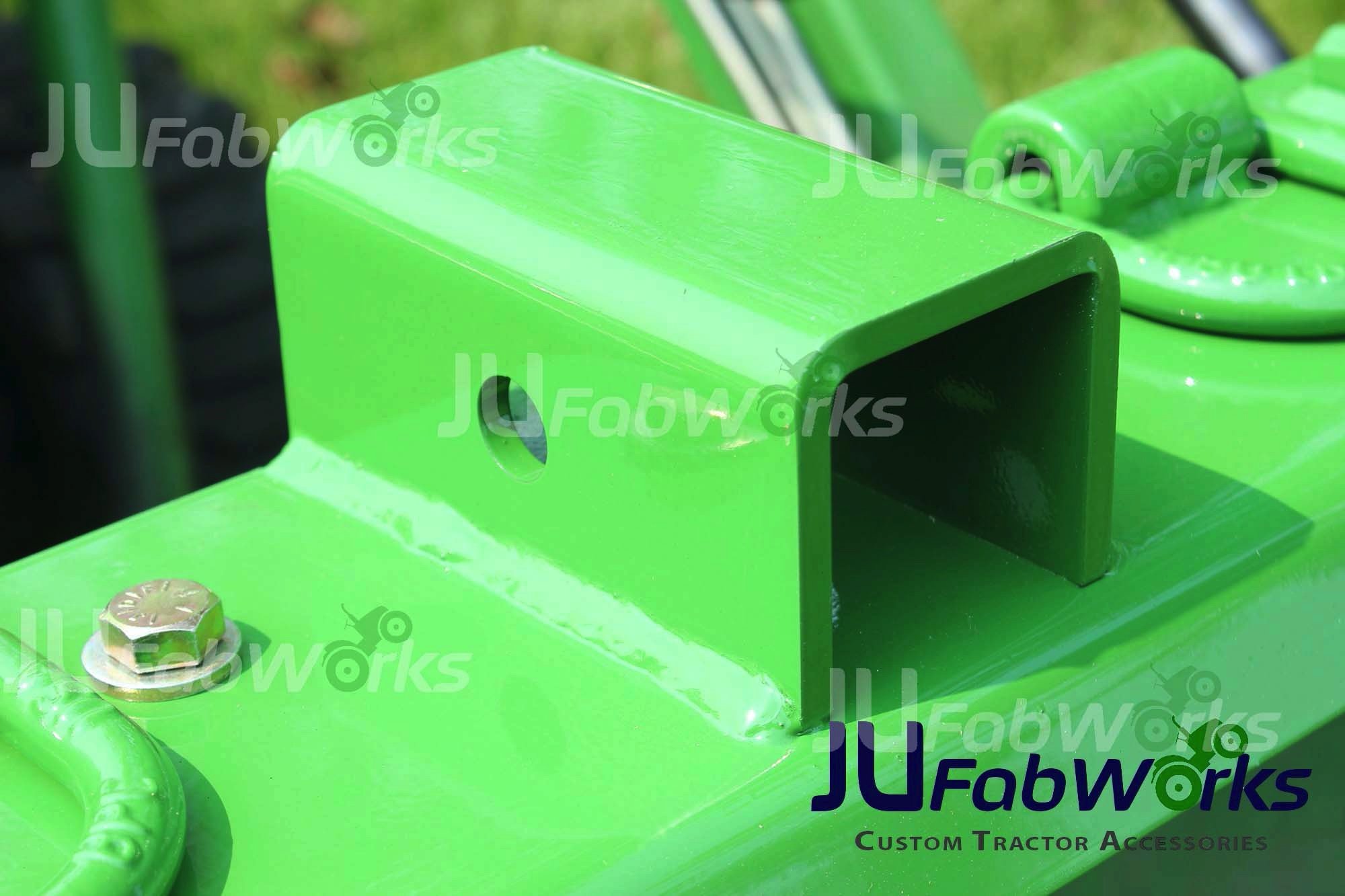

• (1) 2” receiver with 5/8” center hole

• Mig welded construction

• Full Industrial Grade E-Coat and Powdercoat

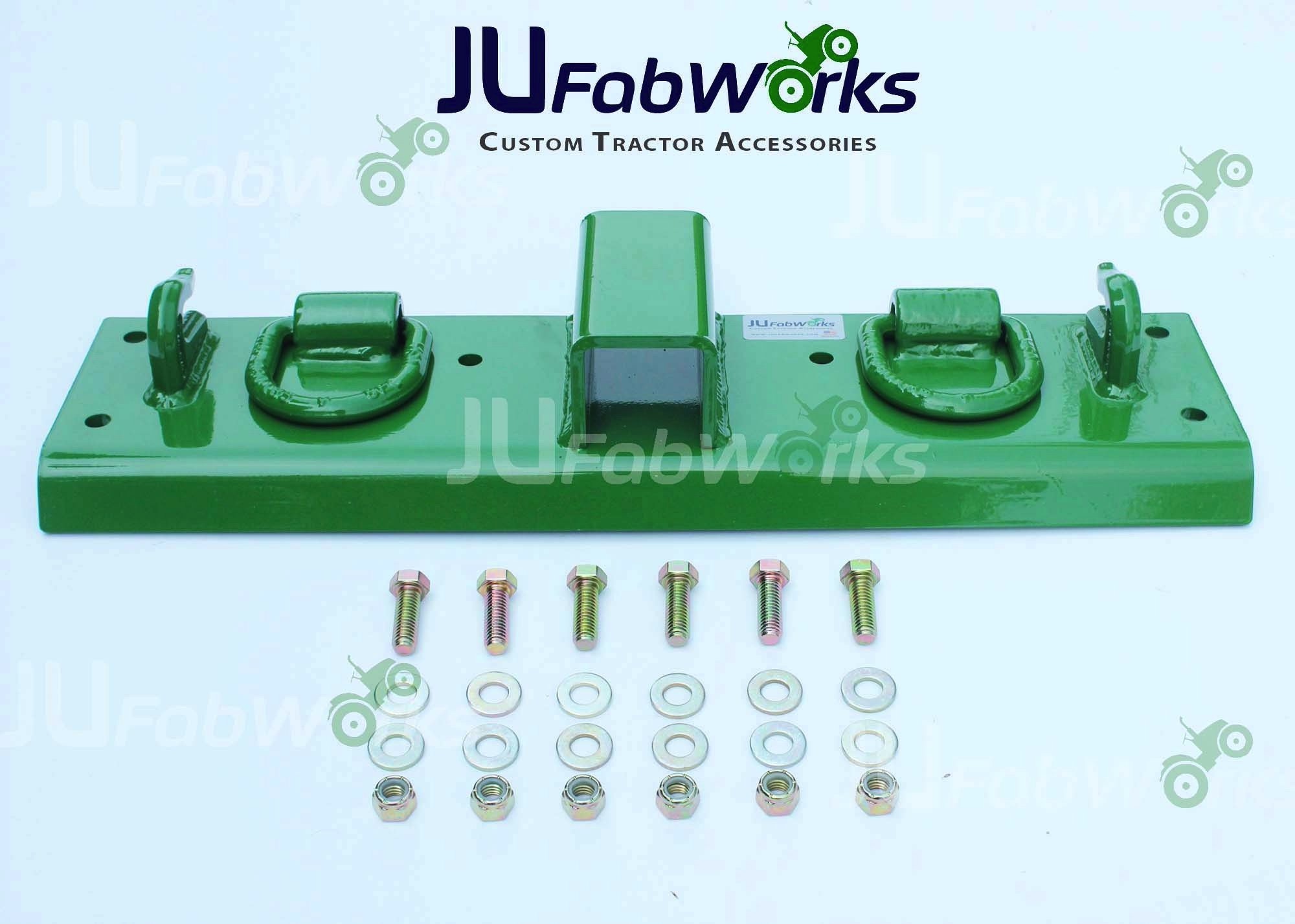

• All grade 8 hardware included

• Instructions for mountingThe Workmaster Plate is designed for John Deere sub compact and compact tractor buckets and will fit all size buckets including:

  2013 and newer John Deere tractors, you can locate the model number of your bucket on the backside of bucket on a metal tag, the model number is scribed onto the tag.

  The Workmaster Plate is designed for John Deere sub compact and compact tractor buckets and will fit all size buckets Including

53" Materials Bucket BW14145 or BXX10052

57” Materials Bucket BW16609

57" Heavy Duty Bucket. BW16787

61" Materials Bucket. BW15863 or BW14146

61" Heavy Duty Bucket. BW14764

73" Materials Bucket. BW14147 or BW16183 or BW14658

73" Heavy Duty Bucket BW14765, BW16358, BW17029

Will NOT work on the 49” bucket (Measures 49 3/4” outside to outside) Our Workmaster universal will work on the 49” bucket

Will NOT work on the BW15273 85” High Volume Bucket

For Tractor Models:

1 series 1025r, 1026r, 1023e 2210, 2305

2 series 2320, 2520, 2720, 2025r, 2032r, 2038r, 4100, 4010, 4110, 4115, 790, 990, 3005, 4005, 4105

3 series 3120, 3320, 3520, 3720, 3033r, 3039r, 3046r, 3025e, 3032e, 3038e, 3025D, 3035D, 3043D 3203

4 series 4200, 4300, 4400, 4500, 4600, 4700, 4210, 4310, 4410, 4610, 4710, 4120, 4320, 4520, 4720, 4044R, 4052R, 4066R, 4044M, 4052M, 4066M

5 series: 5045E, 5045D, 5055E, 5065E, 5075E, 5075M, 5085E 5085E, 5085M, 5083E, 5090E. (Select HD bucket (5 Series ONLY) as the 3” bolts are required for installation on these buckets)

Attention: This model will NOT work on 5 series tractors with the global connection buckets which have a 90 degree bend on top leading edge of bucket. Will work on all 5 series tractors that do NOT have the global connection buckets. (Standard John Deere hook and pin)

Attention:

When ordering there are 3 Variations. Please make sure to choose the correct one for correct bolt length.

1.25” Bolts (Standard Duty Bucket) Fits 53",57", 57"HD,61" and 73" buckets. Comes with 1.25" BOLTS

Note: The standard duty bucket has single wall construction on top of bucket and uses the 1.25” bolts.

2.5” bolts, (Heavy Duty Bucket) Fits 61"HD and 73"HD buckets only. Comes with 2.5" bolts due to the double walled boxed construction on top of the bucket.

3” bolts (5 series tractors only) These buckets require 3” bolts

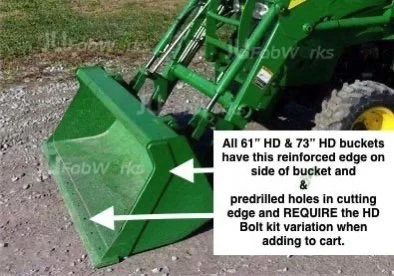

Please refer to the Picture of the Heavy Duty Bucket above to verify correct ordering.

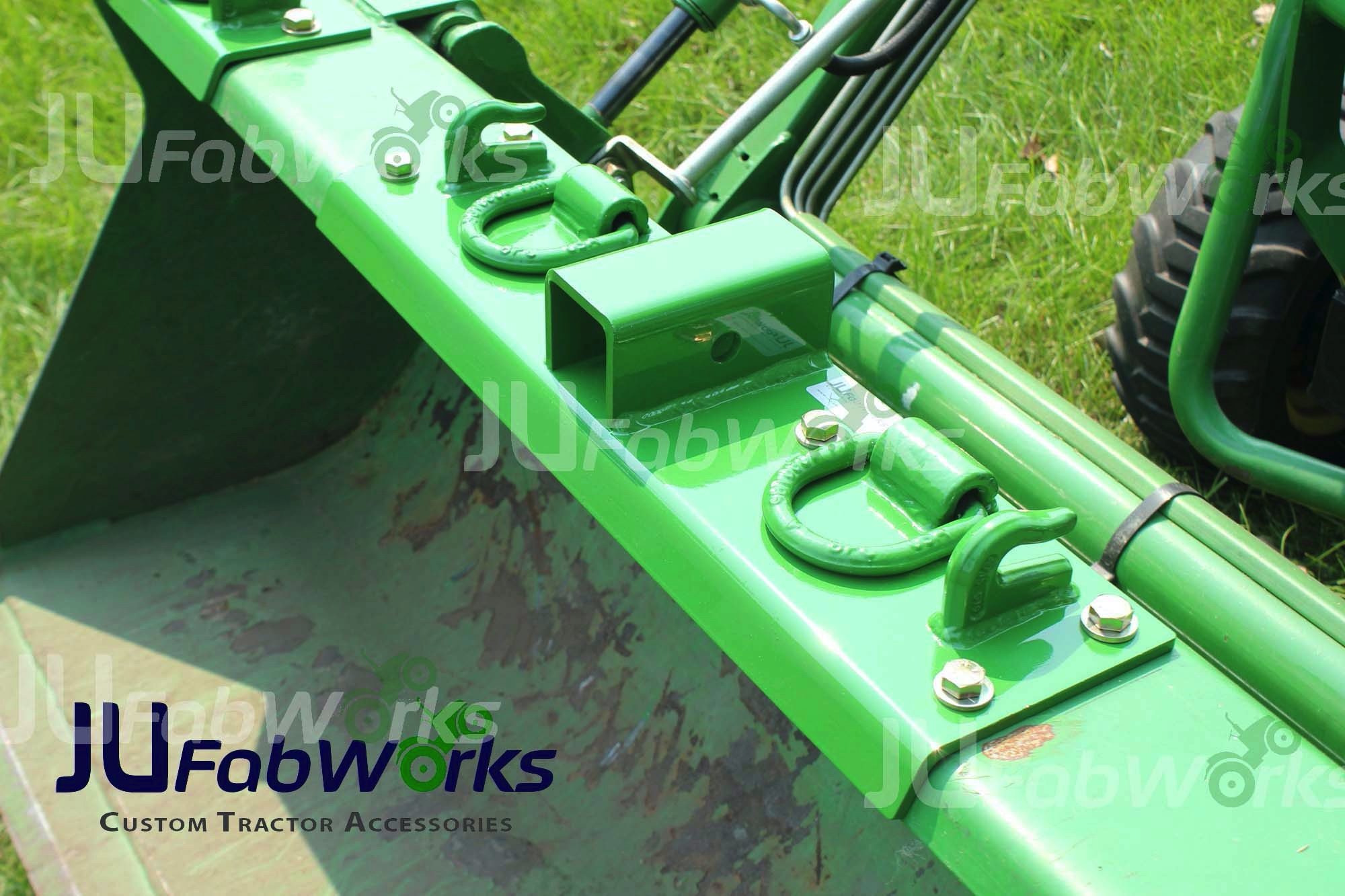

NOTE: The heavy duty buckets are only available from John Deere in 61" and 73" and are most commonly found on the 3,4 and 5 series John Deere tractors. Almost all 1000 series and 2000 series tractors come standard with the standard duty bucket. The 1025r in the pictures has the standard duty bucket.

Select Variation, click add to cart, then click on your “Cart” on the top right corner of the page to proceed to checkout.
